Harrington Lifting Beams come in a wide variety of styles, capabilities and capacities. From a standard lifting beam to load rotating beams, Harrington offers versatility paired with Made in the USA quality.
ALSO SEE THE FULL LINE OF HARRINGTON HOISTS, CLICK HERE TO VIEW
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

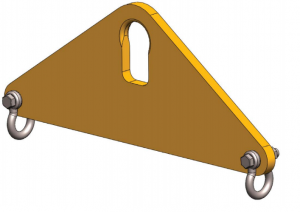

HSSLB SHORT SPAN LIFTING BEAM PLATE STYLE
FEATURES
- These Harrington lifting beams are ideal for short span applications and can be utilized where headroom is limited.
- Supplied with a pair of shackles and one standard spread.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities (supplied w/upper shackle)
- Additional lengths
- Upper shackle
- Upper shackle w/oblong link
- Hooks
[/ezcol_2third_end]
[/ezcol_1third] [ezcol_2third_end]

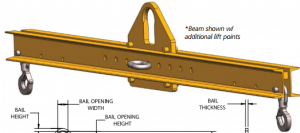

HSDLB STANDARD DUTY LIFTING BEAM CHANNEL DESIGN
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited and comes with a pair of swivel hooks and three standard spreads (3’ and 4’ beams have two standard spreads).
- Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks
- Shackle lugs
- Faspins
- Integrated beam stands
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

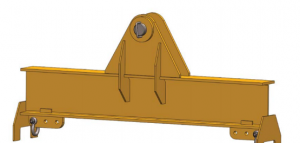

HSDLB STANDARD DUTY LIFTING BEAM I-BEAM DESIGN w/FLAME CUT BAIL
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited and comes with a pair of shackles & swivel hooks with three standard spreads.
- Standard I-Beam construction with integrated beam stands.
- Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks & shackles.
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

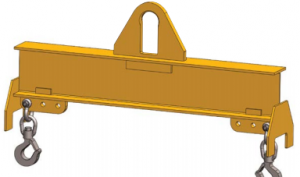

HSDLB STANDARD DUTY LIFTING BEAM I-BEAM DESIGN w/PIN BAIL
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited & comes with a pair of shackles and three standard spreads.
- Standard I-Beam construction with pin bail & integrated beam stands.
- Three standard lift points for load adjustment: outside lift point, middle lift point (outside less 1’), inside lift point (middle less 1’).
- Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Swivel hooks
- Additional shackles
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HBSLB BASKET SLING LIFTING BEAM
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited with slings in a basket hitch.
- Includes two sets of fixed hooks (3’ and 4’ beams have one set of hooks).
- Two standard lift points for load adjustment; outside lift point & inside lift point (1/2 the overall length).
- Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks
- Sling spacers
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HDCLB DUAL CRANE LIFTING BEAM
FEATURES
- These Harrington lifting beams is utilized with two cranes, where headroom is limited, and comes standard with a swivel hook.
- Roller bearing hook standard on capacities 30 tons and over.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are ProofTested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Center bail
- Additional hooks
- Integrated beam stands
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HUNVB UNIVERSAL LIFTING/SPREADER BEAM
FEATURES
- This style of universal beam can be utilized as a lifting beam where headroom is limited or a spreader beam where extra stability is required.
- As a lifting beam, the upper lift point can be easily adjusted to lift an off center load.
- Can be configured as an optional three or four point lifting system
- Can be supplied with optional chain top rigging.
- Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are ProofTested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Chain top rigging
- Three point lifting system
- Four point lifting system
- Additional lift points and spreads
- Higher capacities
- Additional lengths
- Swivel hooks
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HALB ADJUSTABLE LIFTING BEAM
FEATURES
- These Harrington lifting beams can lift off center loads easily by adjusting the bail prior to the lift.
- This lifter can be used where headroom is limited, & comes with multiple spreads that are adjustable to accommodate various load sizes at 6” adjustable increments.
- Supplied with two lower shackles.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Swivel hooks
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HABLB ADJUSTABLE BAIL LIFTING BEAM
FEATURES
- These Harrington lifting beams can lift off center loads easily by adjusting the bail prior to the lift.
- This lifter can be used where headroom is limited, & comes standard with one outside spread and two swivel hooks (additional spreads & swivel hooks are available).
- Engineered & manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity & certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks
- Faspins
- Integrated beam stands
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HLLB LOAD LEVELING BEAM
FEATURES
- These Harrington lifting beams can lift off center loads easily by adjusting the bail with the standard chain wheel prior to the lift and has unlimited adjustment within the span of the bail.
- This lifter can be used where headroom is limited, and comes standard with one outside spread and two swivel hooks (additional spreads and swivel hooks are available).
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Motorized bail
- Additional lift points
- Higher capacities
- Additional lengths
- Low headroom bail
- Additional hooks
- Faspins
- Beam stand
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HTPLB THREE POINT LIFTING BEAM
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited and when lifting objects that require multiple lift points.
- Designed to meet your specific lifting requirements.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Multiple lift points

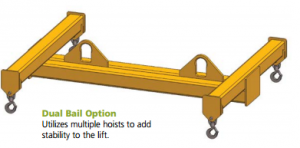

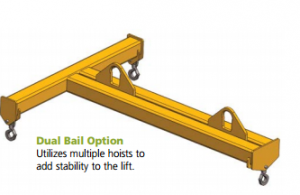

- Dual bails
- Low headroom bail
- Adjustable spread
- Adjustable bail
- Swivel hooks
- Shackle lugs
- Faspins
- Beam stand
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

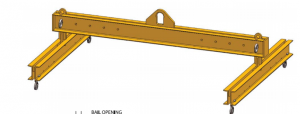

HFPLB FOUR POINT LIFTING BEAM
FEATURES
- These Harrington lifting beams can be utilized where headroom is limited and when lifting objects that require multiple lift points.
- Designed to meet your specific lifting requirements.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Multiple lift points
- Dual bails
- Low headroom bail
- Adjustable spread
- Adjustable bail
- Swivel hooks
- Drop chains
- Shackle lugs
- Faspins
- Beam stand
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

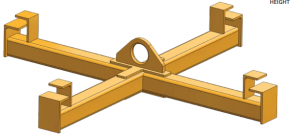

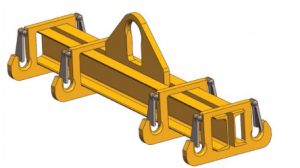

HFPSL FOUR POINT SACK LIFTER BEAM
FEATURES
- These Harrington lifting beams are designed to lift bulk container sacks.
- Standard Sling Keeper design provides improved sling containment during the lift.
- Low headroom design that meets metric rating requirements.
- Smooth edge design to minimize wear on lifting straps.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS
- Sling spacers
- Additional sizes are available
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HFPAB FOUR POINT ADJUSTABLE BEAM
FEATURES
- This standard four point adjustable spread style of lifting beam can be utilized where headroom is limited and when lifting objects that require multiple lift points.
- Supplied with four swivel hooks.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA. Model # Capacity (US Tons)* Main Beam Min/Max Spread Cross Beam Min/Max Spread Dimensions (Inches) Weight Headroom (Lbs.) Bail Height Bail Opening Width Bail Opening Height Bail Thickness Hook Opening HFPAB-3-84/60 3 36/84 24/60 28 1.25 3 5 1 0.91 473 HFPAB-5-120/96 5 48/120 36/96 33 2 4 7 1.25 1 958 HFPAB-10-144/96 10 72/144 36/96 42 2 4 7 1.25 1.36 1928
OPTIONS
- Beam stand
- Additional sizes and options are available
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HDCRB DUAL CRANE ROTATING BEAM
FEATURES
- These Harrington lifting beams are designed to be utilized with dual hoists and can rotate the load parallel.
- Designed to meet your specific lifting requirements.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA.
OPTIONS

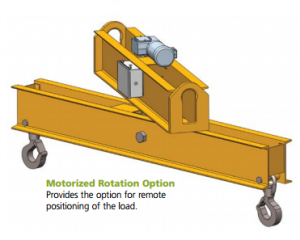

- Manual or motorized beam rotation
- Dual hooks
- J-Hooks
- Low headroom bail
- Swivel hooks
- Shackle lugs
- Faspins
- Beam stand
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
HCGCLB CHLORINE GAS CYLINDER LIFTING BEAM
FEATURES
- These Harrington lifting beams are designed to lift chlorine gas cylinders.
- Low headroom design.
- Smooth edge design to minimize wear on lifting straps.
- Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
- 100% of ALL lifting beams are Proof-Tested to 125% capacity and certificates supplied at No Additional Charge.
- Made in USA. Model # Capacity (US Tons)* Dimensions (Inches) Outside Weight (Lbs.) Spread Headroom Bail Height Bail Opening Width Bail Opening Height Bail Thickness HCGCLB-2-80/82 2 80.75 – 82.25 18.5 – 17.5 0.88 3 5 0.75 125
OPTIONS
- Additional sizes are available
[/ezcol_2third_end]
