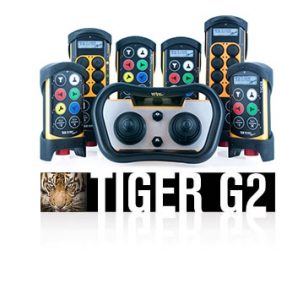

Tele-Radio G2 Tiger Remote, Maximum Safety for Complex Applications!
Tele-Radio G2 Tiger Remote is a robust radio control system adaptable to standard and complex lifting and non-lifting applications in harsh environments. It operates in the 915MHz band with frequency hopping technology, changing frequencies within a spectrum every 40 milliseconds.
Available in different configurations, Tele-Radio G2 Tiger Remote receivers provide standard relay and analog in/outputs, digital inputs and communication via different fieldbus systems, whereas both the STOP function and two designated relays are approved according to SIL3 IEC 61508 standard and PLe, the highest safety rating available in radio control.
Tele-Radio G2 Tiger Remote is capable of providing feedback from your machine, displayed on the transmitter’s LCD screen or alternatively utilizing LED’s situated next to the transmitter’s function buttons.
Systems are pre-programmed with operating modes accommodating hundreds of different user applications. Advanced settings or custom software are available upon request.
System Overview:
• Approved according to SIL3 IEC 61508 standard and PLe
• FCC, IC and CE approved
• 915MHz frequency with frequency hopping
• Full Duplex system, receiver and transmitters serve as transceivers
• Capable of providing feedback on transmitter LCD screen or by means of function LED’s
• Communication via fieldbus systems (CANopen, Profibus, Modbus/TCP)
• Receivers accept universal power supply 12-24V AC/DC and 48-230V AC
• Limit unauthorized access with RFID tags or PIN codes
• Safely capable of controlling up to 15 receivers from a single transmitter with LED light indicator or on-screen feedback
• Use RFID tag or PIN codes to control indefinite amounts of receivers
• Set relays to remain energized even if the E-STOP is pressed (ideal for vacuum and magnet lifters)
• Available function relay sequences and custom timers enabled by software
• Adjustable threshold to set minimum and maximum operating range between transmitter and receiver, creating safety zones
• Fail safe operation, out of range and “out of sight” shut-off, transmitter time-out for added safety
• Transmitters and Receivers are rated as high as IP-66
• Fully customizable to your specific requirements…
Industrial Applications include but are not limited to:
Nuclear Power Plants, Work Cages, Man-Lifts, Lifting Equipment, Mobile Equipment, Winches, Hoists, Vacuum Lifters, Cranes, Conveyors, Feeders, Ventilators, Waste Compactors, Compressors, Concrete Pumps, Magnet Controls, Traffic Lights, Hangar Doors and Gates, Hook Loaders, Recovery Vehicles, Forest & Agriculture machines, Davit Cranes, Hydraulic Equipment, Crushers, PTO Controls…
