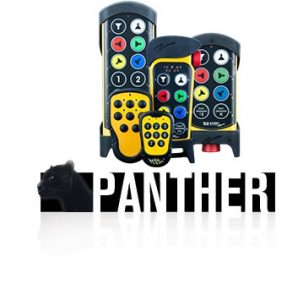

Tele-Radio Panther Remote

Tele-Radio Panther Remote, the Ultimate in Versatility!

Tele-Radio Panther Remote is our most advanced and versatile system to date. It uses the worldwide accepted 2.4GHz frequency, providing a range of up to 1600ft (line of sight). Hardware is available with standard system configuration or custom software to meet your specific requirements.
Available with relay, transistor and analog output cards in addition to digital inputs, Panther receivers offer a broad variety of functionality to adapt our radio remote control to your specific application.
Tele-Radio Panther Remote transmitters range in size from sub compact with 3-Buttons, to robust units with 10-Buttons (single and two-step with or without E-STOP). Push buttons/relays may be mapped to adapt to your control needs.
System Overview:
• 2.4GHz frequency with DSSS(Direct Sequence Spread Spectrum)
• Worldwide accepted frequency (FCC and IC, CE approved)
• More than 8 systems may operate within the same frequency channel which, combined with 16 different available frequency channels, enable the operation of hundreds of systems in close proximity interference free
• Receiver power supply voltages range from 12-24V AC/DC, 24-230VAC or a combination of both
• Individual relays (single pole, double throw) may be set to operate in momentary and or latching mode (field programmable)
• Available function relay sequences and custom timers enabled by software
• Optional Start relay, Active relay, Working relay, Kill relay
• Optional fail safe operation, out of range shut-off, transmitter time-out for added safety
• Pair multiple transmitters to a single receiver
• Optional transmitter function LED’s indicating command execution or selection of up to 4 receivers from a single transmitter
• Battery indicator LED
• Adjustable threshold to set minimum and maximum operating range between transmitter and receiver
• Receiver rating of IP-66 and transmitter rating of up to IP-67
• Many more options … contact us to discuss your application
Industrial Applications for the Tele-Radio Panther Remote include but are not limited to: Mobile Equipment, Lifting Equipment, Winches, Hoists, Vacuum Lifters, Cranes, Conveyors, Feeders, Ventilators, Waste Compactors, Compressors, Concrete Pumps, Magnet Controls, Traffic Lights, Hangar Doors and Gates, Hook Loaders, Recovery Vehicles, Forest & Agriculture machines, Davit Cranes, Hydraulic Equipment, Crushers, PTO Controls…
