Terrier Horizontal Lifting Clamps
The FHX, FHSX, FHX-V, TDH, THSK and TNMH horizontal safety lifting clamps have specifically been designed for the horizontal lifting and transporting of steel plates. The clamps consist of a body, cam, and cam pin. The cam also functions as a lifting shackle and ensures that the load is held firmly while it is being lifted.
ALSO SEE VERTICAL LIFTING CLAMPS, CLICK HERE TO VIEW THEM
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
FHX / FHSX
Terrier Horizontal Lifting Clamps
lightweight heavy duty clamp for horizontal lifting
Application:
- For horizontal lifting and transporting of steel plates and other non-deflecting materials
- Terrier FHX / FHSX lifting clamps must always be used in pairs (or multiple pairs)
- Jaw openings available from: 0 to 150 mm
- FHSX types are supplied with enlarged jaw opening
- Working load limit (WLL) 1000 – 25000kg per pair (Higher WLL available upon request)
Features and benefits:
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty welded body
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

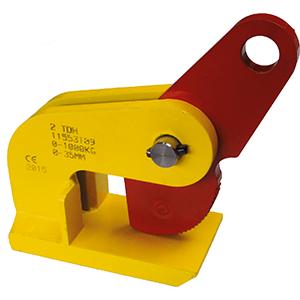

TDH
Terrier Horizontal Lifting Clamps
lightweight heavy duty clamp for safe and easy lifting of bending sheets
Application:
- For horizontal lifting and transporting of sheets that will bend or deflect when being lifted
- Terrier TDH lifting clamps must always be used in pairs (or multiple pairs)
- Jaw openings available from: 0 to 50 mm
- Working load limit (WLL) 1000 – 6000kg
Features and benefits:
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty welded body
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]

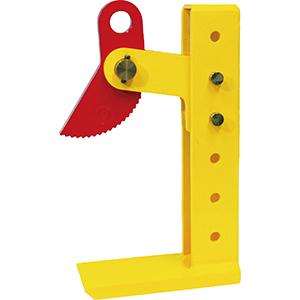

THSK
Terrier Horizontal Lifting Clamps
Adjustable extra large jaw opening for stacks, packages and thick single plate lifting
Application:
- For horizontal lifting, handling and transporting of banded/secured stacks, packages and or single thick steel plates
- Terrier THSK lifting clamps must always be used in pairs (or multiple pairs)
- Adjustable jaw offers wide variety of openings available from 3 to 420 mm
- Working load limit (WLL) 1500 – 9000kg per pair
Features and benefits:
- Easy adjustable jaw opening
- Quick and easy placing and removing of the clamp
- Lightweight design for easy handling
- Tough quality heavy duty welded body
[/ezcol_2third_end]
[ezcol_1third]
[/ezcol_1third] [ezcol_2third_end]
FHX-V
Terrier Horizontal Lifting Clamps
Lightweight heavy duty clamp for horizontal lifting with torsion spring
Application:
- For horizontal lifting and transporting of steel plates and other non-deflecting materials
- Terrier FHX-V lifting clamps must always be used in pairs (or multiple pairs)
- Jaw openings available from: 0 to 60 mm
- Working load limit (WLL) 1000 – 6000kg per pair
Features and benefits:
- Pre-tensioned spring cam feature for easy single operator usage
- Clamp can be closed and fixed on any desired spot
- Compact & lightweight design for easy handling
- Tough quality heavy duty welded body
[/ezcol_2third_end]
