For more than 30 years Terrier is a worldwide known brand which stands for high quality lifting solutions and service. Terrier tough quality lifting clamps guarantee a high performance and a long operational life. They are maintenance-friendly and have heavy duty welded shell bodies.
TBS
Multi-purpose screw clamp for HP-profiles
Application:
- For use as a (temporary) lifting point in spaces with HP- (bulb) profiles, like sectional ship parts and ship engine rooms.
- The moment a load is applied, the clamp is automatically fixed.
- Used for HP-100 to HP-240 (bulb) profiles.
- Working load limit (WLL) 1500 – 3000kg.
Features and benefits:
- Equipped with a thread spindle for easy attachment, providing a powerful clamping force on the workpiece
- Lightweight design for easy handling
- Tough quality heavy duty body
- Maintenance-friendly, easy to exchange parts which are available upon request

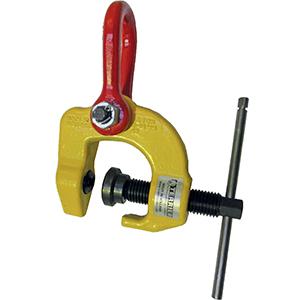

TSCC / TSCC-W
Multi-purpose screw clamp
Application:
- For vertical and horizontal lifting and transportation of a large variety of steel structures
- Can also be attached upside down and be used as a (temporary) lifting point
- Jaw openings available from: 0 to 100 mm
- TSCC-W types are supplied with enlarged jaw opening
- Working load limit (WLL) 500 – 6000kg .
- No min . WLL
Features and benefits:
- Special universal design ensures multi-purpose application of lifting steel structures
- Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece
- Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied
- Lightweight design for easy handling
- Tough quality heavy duty drop forged body
- Forged alloy components, where required
- Maintenance-friendly, easy to exchange parts which are available upon request
